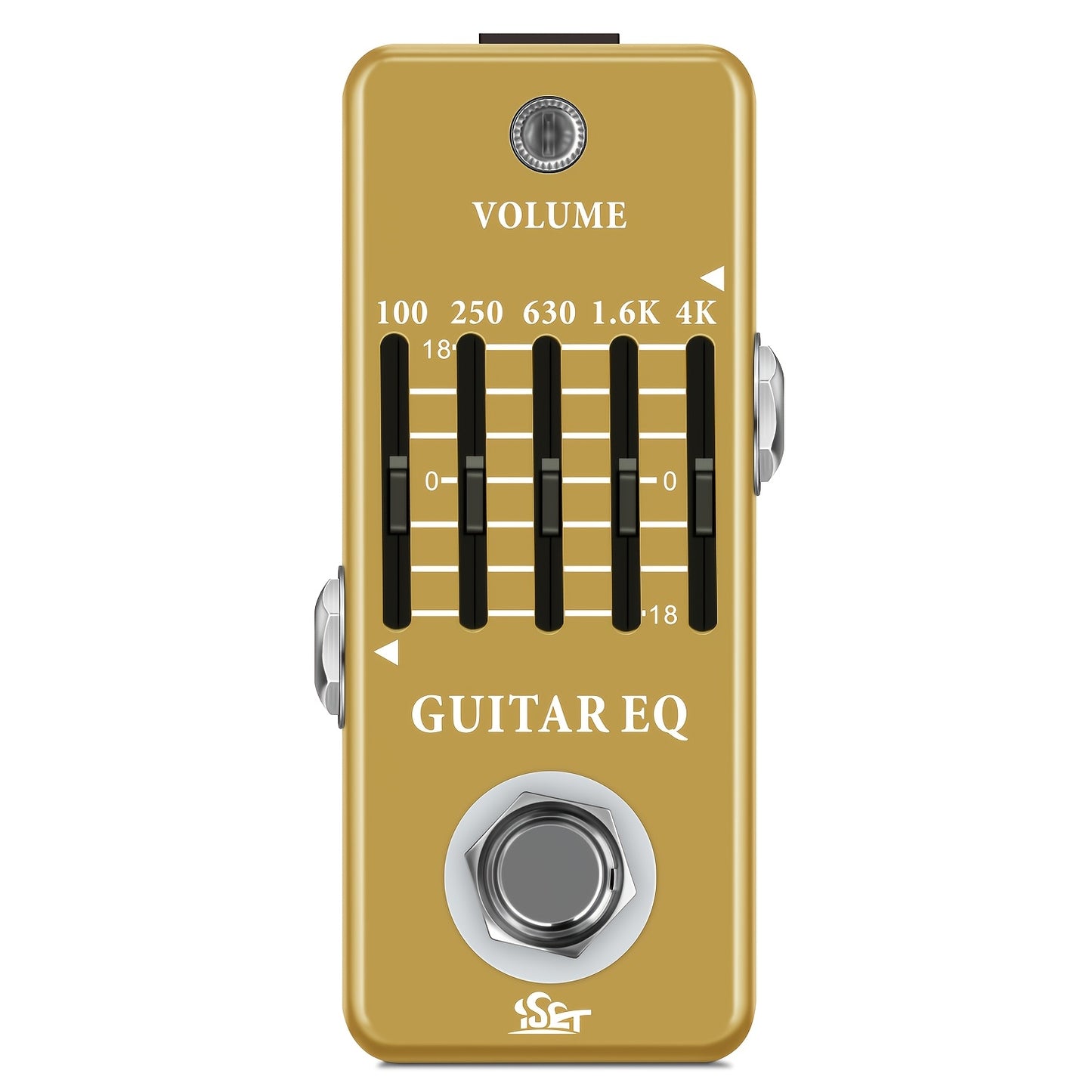

ISET Analog Guitar Equalizer Pedal for Electric And Acoustic Guitars with True Bypass

This guitar pedal features a true bypass circuit to help maintain your guitar's tone when the effect is disengaged.
Equipped with four equalizer controls for tone shaping of your electric or acoustic guitar's sound.
Includes 3dB boost and step-down knobs for signal level adjustments.
Operates on USB power with an input voltage of up to 36V.

This listing describes the EQ Guitar Effects Pedal, which offers simple tone equalization for both home practice and live performances. It's a reliable tool that lets you adjust the treble, midrange, and bass while preserving your guitar's authentic sound. With a range of ±18dB, it helps you discover your preferred tone across frequency bands of 100Hz, 250Hz, 630Hz, 1.6kHz, and 4kHz, providing a broad adjustable range.

This device features true bypass, ensuring a clear sound while reducing tone loss to maintain optimal audio quality. Please note that the ISET EQ pedal requires a 9V power supply with a center negative connection (not provided).

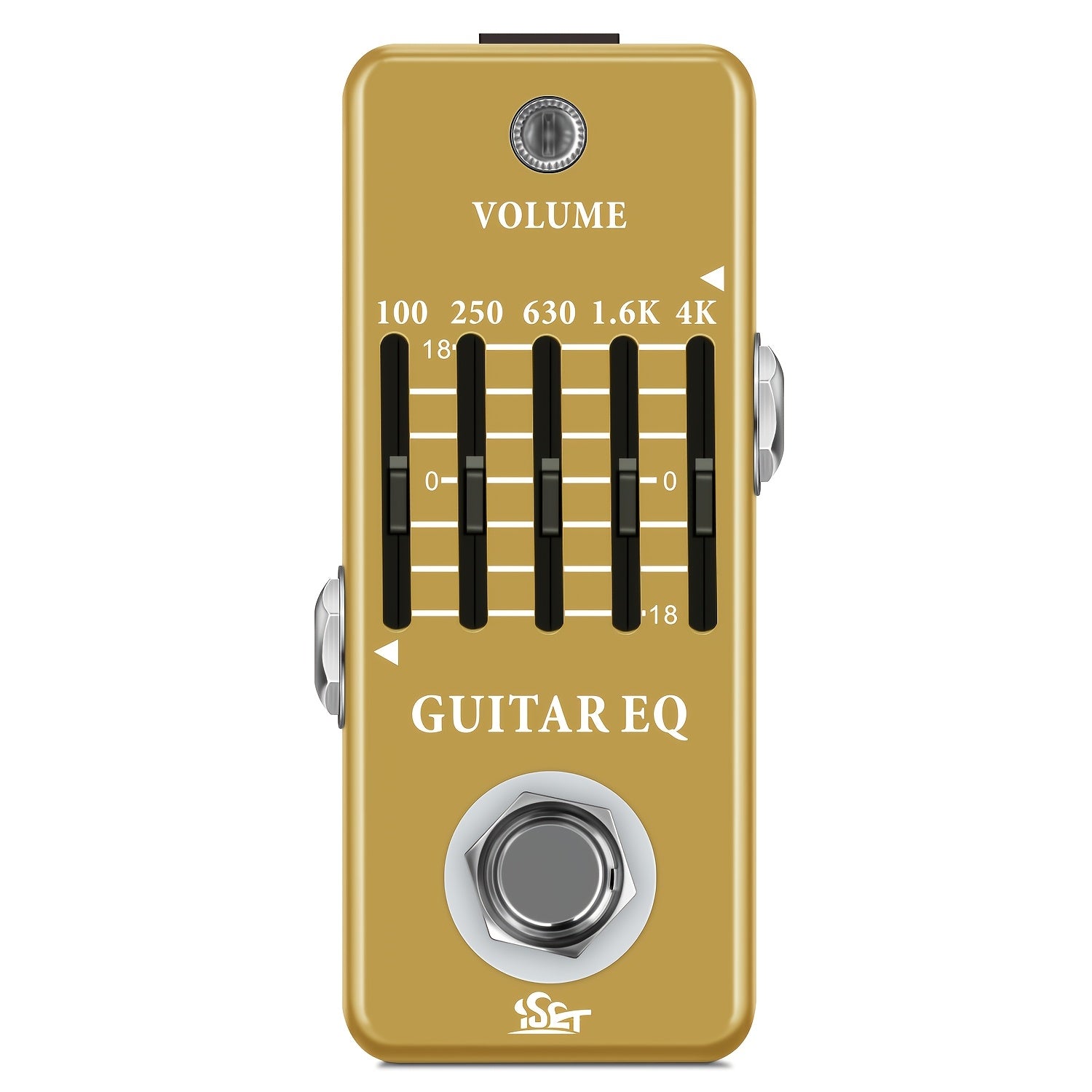

The ISET Equalizer Pedal comes with frequency bands at 100Hz, 250Hz, 630Hz, 1.6 KHz, and 4 KHz. It is tailored for guitarists, offering a five-band graphic EQ with an adjustable gain range of ±18 dB for each band. This allows musicians to refine their sound across five distinct frequencies, helping to avoid feedback that can result from extra distortion effects.

Here are the specifications: 1. Input: 1/4" monaural jack with an impedance of 470K ohms. 2. Output: 1/4" monaural jack with an impedance of 1K ohms. 3. Power supply: DC 9V, with the plug polarity being positive on the barrel and negative in the center. 4. Working current: 8mA. 5. Dimensions: 3.7 inches in diameter, 1.8 inches wide, and 2.1 inches high. 6. Weight: 8.6 ounces including the box.

The package contains 1 ISET EQ Pedal and 1 User Manual.

Product Specifications Condition: Brand New (Unused) Items that are brand new are offered by an authorized seller or the original manufacturer and come with all original packaging. Find out more. Brand: ISET Model: PD-15 You may find product safety details here.
